Multi-range air-core inductors with configurable inductance and peak current
INTEGRATION · TEST INTERFACE
Fixtures, Inductors & Safety Integration
Application-specific air-core inductors, low-inductance fixtures and high-voltage safety enclosures that complete the test environment.
MODEL / PLATFORMAPPLICATION-SPECIFIC
Start an enquiry
01APPLICATION-SPECIFICPLATFORM
02Dynamic test loopsTypical applications
0325 / 5 / 10 / 50 / 100 / 200 μH classesInductor range
04P18Company catalogue reference
System highlights
Ancillary components are engineered as part of the measurement and safety architecture.

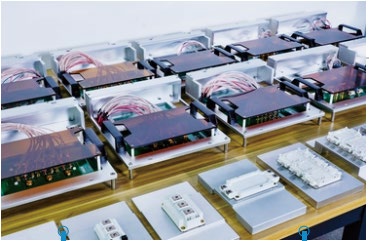

Low-stray-inductance fixtures with quick changeover

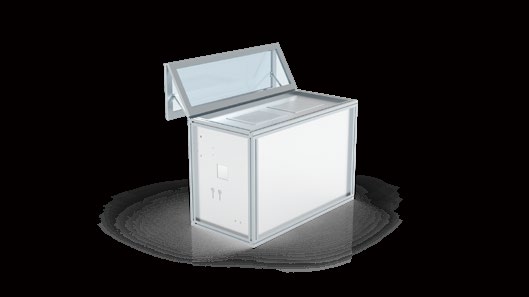

Fire-resistant, moisture-resistant high-voltage safety enclosures
Door interlock, emergency stop, grounding, lighting and centralized power
Catalogue specifications
Fixtures, Inductors & Safety Integration
Technical data shown is based on the current WYJ product catalogue. Final configuration is application-specific.
01Inductor range
25 / 5 / 10 / 50 / 100 / 200 μH classes
02Insulation
5000 VAC
03Peak current
Up to 6000 A
04Fixture change
Below 20 s
05Safety logic
Door-open HV cutoff and interlock
06Configuration
Custom to DUT, topology and test loop
Typical applications
Device coverage
01Dynamic test loops
02Fixture conversion
03High-voltage laboratories
04Production test integration
APPLICATION ENGINEERING · SHENZHEN
